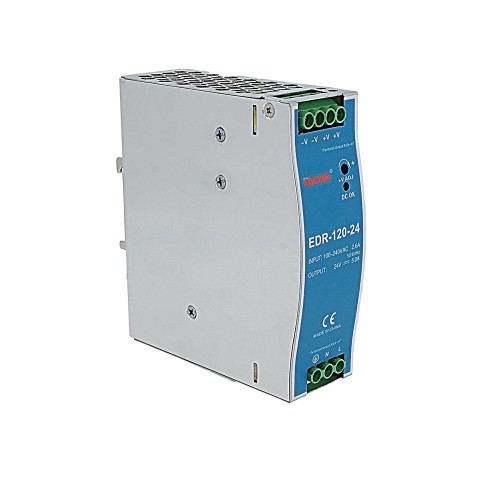

EDR dinrail 120w AC'den DC'ye tek çıkışlı anahtarlama güç kaynağı
Teknik Broşür:
Dosyayı İndir
EDR-120 is a slim line DIN rail Class I switching power supply.
Designed with a fully isolated plastic case to prevent user contact and the risk of shock.
Featuring up to 88% efficiency this series can be cooled using only free air convection up to 60°C which significantly increases the reliability and lifetime of the power supply.
Other standard features include its low no-load power consumption, to save energy, short circuit, overload, and over voltage protections, and DC OK relay contact with LED indicator for monitoring the PSU status.
If you have any questions, please do not hesitate to contact us atEmail: info@sttekno.com.tr
| Model | EDR-120-12 | EDR-120-15 | EDR-120-24 | EDR-120-48 |
| DC Output Voltage | 12V | 15V | 24V | 48V |
| Rated Output Current | 10A | 8A | 5A | 2.5A |
| Output Current Range | 0-10A | 0-8A | 0-5A | 0-2.5A |
| Wave And Noise | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 120W | 120W | 120W | 120W |
| Efficiency | 86% | 88% | 88% | 89% |
| Adjustable Range For DC Voltage | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V% | 43.2~52.8V% |
| AC input Voltage Range | 88~132VAC 47~63Hz; 240~370VDC | |||
| Input Current | 3.3A/115V 2A/230V | |||
| AC Inrush Current | Cold-start current 30A/115V 60A/230V | |||
| Overload Protection | 105%~150% Type: pulsing hiccup shutdown Reset: auto-recovery | |||
| Over-Voltage Protection | 13.8~16.2V | 18~21V | 27.6~32.4V | 58~62V |
| Setup, Rise, Hold up Time | 1200ms, 60ms, 60ms/230V | |||
| Withstand Voltage | Input and output internal: Input and enclosure: 1.5KvAC, Output, and enclosure: 0.5KvAC | |||
| Isolation Resistance | Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ | |||
| Working Temperature And Humidity | －10°c ~ 50°c(Refer to output derating curve), 20%~90%RH | |||
| Overall Dimension | 40×125.2×113.5mm | |||
| Weight | 0.6Kgs | |||
| Safety standards | CE | |||
Protections: Short circuit / Overload / Over voltage / Over temperature
Our products have CE ROHS certification to ensure quality.
The EDR din rail 120w AC to DC circuit output switching power supply is a semiconductor manufacturing equipment.
This product can be used in industrial control systems
Factory automation
